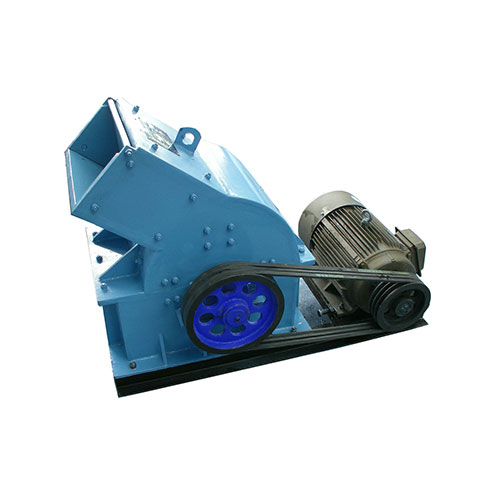

Hammer Crusher

This product breaks up materials through the collision of the fast rotating ram and materials. It has the simple structure, big crushing ratio, and high production efficiency, etc. Our hammer crusher is developed for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic material, construction material, highway, burning, etc. This equipment can adjust to the cleft and the discharging granularity as the customers request to satisfy different needs.

Send E-mail Get Price

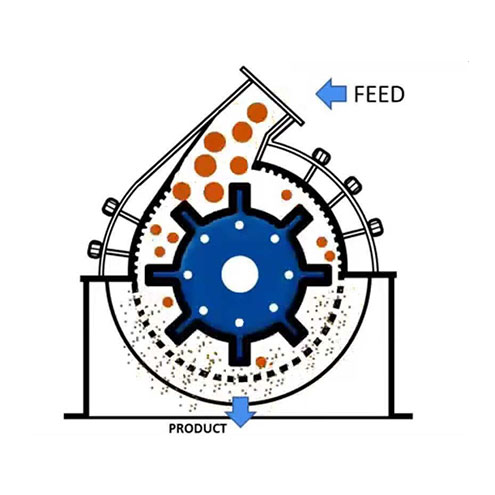

Operating principle of Hammer Crusher:

In the hammer crusher, the motor drives the rotor to rotate at a high speed through the belt, and on the rotor there are series of hammers. When the materials get into the working area of hammers, the rotating hammers with high rotation speed are crushing them, the crushed products meeting the required size can be discharged by the outlet and become the final products.

Typical Technical Data:

Model	Rotor speed (r/min)	Feed opening (mm)	Max feeding size (mm)	Discharging size (mm)	Capacity (t/h)	Motor power (kw)	Weight (t)	Overall dimensions L×W×H(mm)
Model	Rotor speed (r/min)	Feed opening (mm)	Max feeding size (mm)	Discharging size (mm)	Capacity (t/h)	Motor power (kw)	Weight (t)	Overall dimensions L×W×H(mm)
Φ400×400	1500	145×450	100	0-30	5-8	7.5	0.9	844×942×878
Φ600×400	1000	295×450	100	0-35	10-12	18.5	1.03	1054×972×1117
Φ600×600	1000	295×570	100	0-35	12-18	45	2.14	1315×840×1501
Φ800×600	1000	350×570	120	0-45	20-25	55	2.45	1515×2586×1040
Φ800×800	1000	350×850	120	0-45	35-45	55	3.05	1515×2831×1040
Φ1000×800	1000	580×850	200	0-45	25-40	110	6.5	3206×2210×1515
Φ1000×1000	1000	580×1060	200	0-45	40-80	132	7.59	3514×2230×1515
Φ1250×800	750	650×850	200	0-45	20-50	132	11.7	2630×1780×2050
Φ1250×1250	750	650×1330	200	0-45	90-110	185	13.2	2630×2180×2050
Φ1400×1400	750	1050×1540	250	0-45	120-170	280	17.2	2790×2800×2310
Φ1600×1600	600	1500×1785	350	0-60	220-280	450	22.8	3350×3120×2660
