Rotary Drum Lime Slaker is the most desirable machine to produce high quality lime milk. The rotating drum could improve the slaking efficiency and crush any agglomerated lumps through impact force between the lumps and against the drum and lifting blades. There is a screen mesh at the end of the rotating drum to remove big un-slakable objects; remaining fine grits can be removed via an additional screw grit remover.
Rotary Drum Lime Slaker is the most desirable machine to produce high quality lime milk.The rotating drum could improve the slaking efficiency and crush any agglomerated lumps through impact force between the lumps and against the drum and lifting blades. There is a wire mesh at the end of the rotating drum to remove big un-slakable objects; remaining fine grits can be removed via an additional screw grit remover.
This process is called Lime Slaking. It features an excess of water in comparison with lime hydration. The lime and water feeding rate may vary from 1:3 to 1:7 in lime slaking. Baumé scale of output lime milk is at approx. 13 to 29 and lime milk density at 1.1g/L to 1.25g/L.

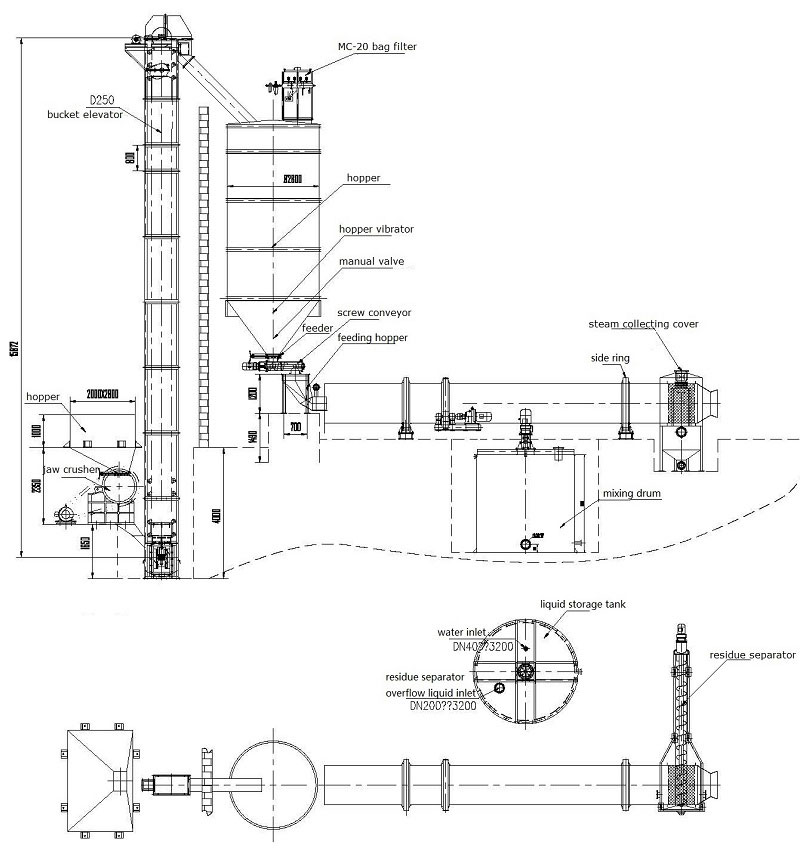

The lime milk or slurry preparation plant usually consists of lime crusher, bucket elevator, lime silo &feeder, rotary drum lime slaker with steam hood and slag remover to remove unslaked lime grits.
| Model | XH-800 | XH-1000 | XH-1300 | XH-1500 | XH-1800 | XH-2000 |
| Lime milk capacity(m3/h) | 4-8 | 10-15 | 10-22 | 22-28 | 28-40 | 40-60 |
| Lime milk density(0 Be°) | 13-15 | 13-15 | 13-15 | 13-15 | 13-15 | 13-15 |
| Drum rotating speed(rpm) | 3-7 | 3-6 | 3-5 | 3-5 | 3-5 | 3-5 |
| Drum innersize(mm) | 800 | 1000 | 1300 | 1500 | 1800 | 2000 |
| Drum length(mm) | 8000 | 10000 | 12000 | 14000 | 16000 | 18000 |
| Efficient volume index(%) | 20 | 20 | 20 | 30 | 30 | 40 |
| Motor power(kw) | 4 | 5.5 | 7.5 | 11 | 15 | 15 |
| Total weight(Kg) | 6500 | 7800 | 13800 | 18500 | 24500 | 29600 |
